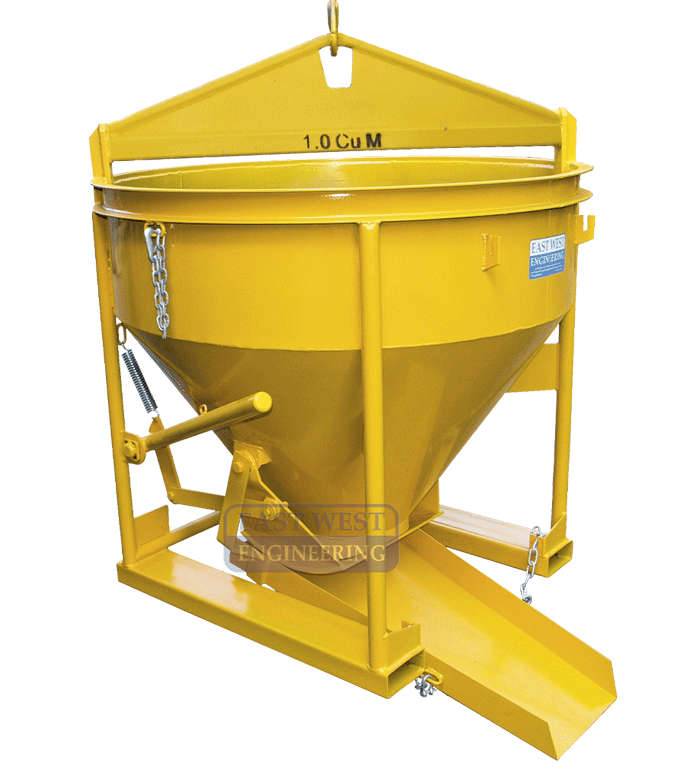

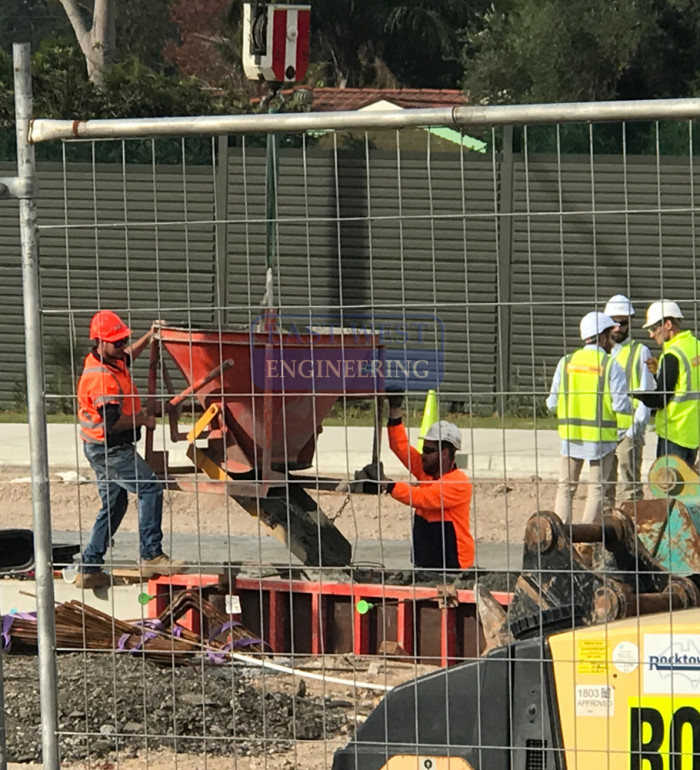

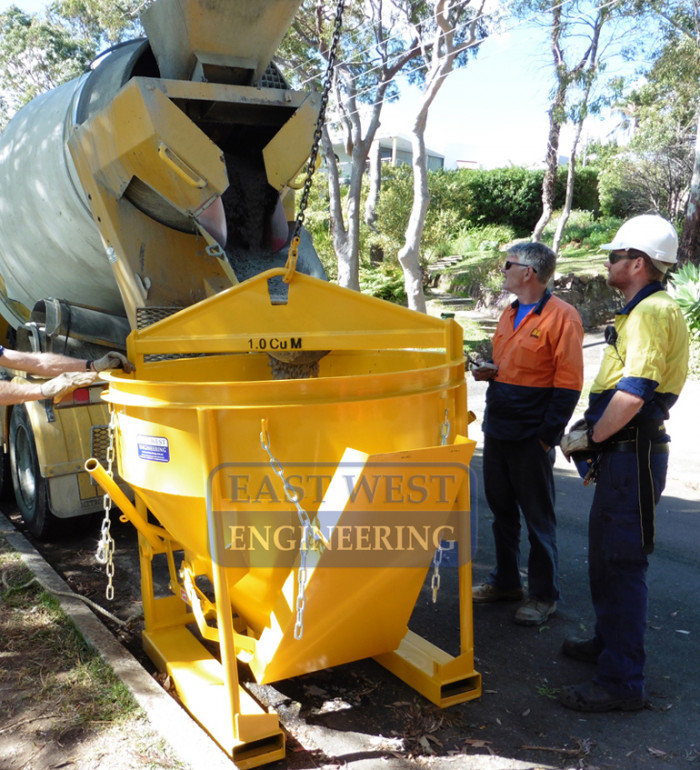

The CKM Concrete Kibble is designed for easy transfer of concrete on site by overhead crane.
FEATURES:
- Lightweight, yet heavy duty

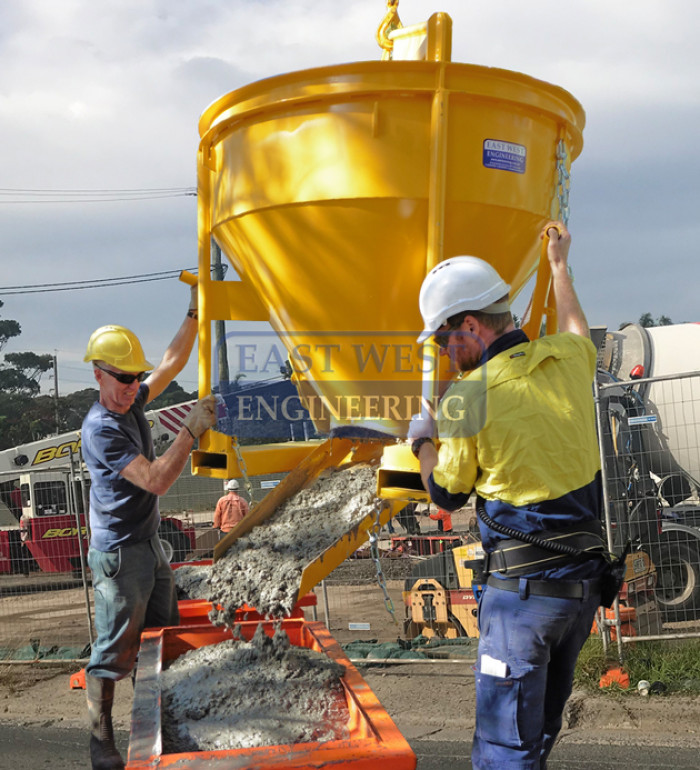

- Adjustable chute allows discharge from the bottom or side of unit
- Lever operated from either side, for flexibility of use

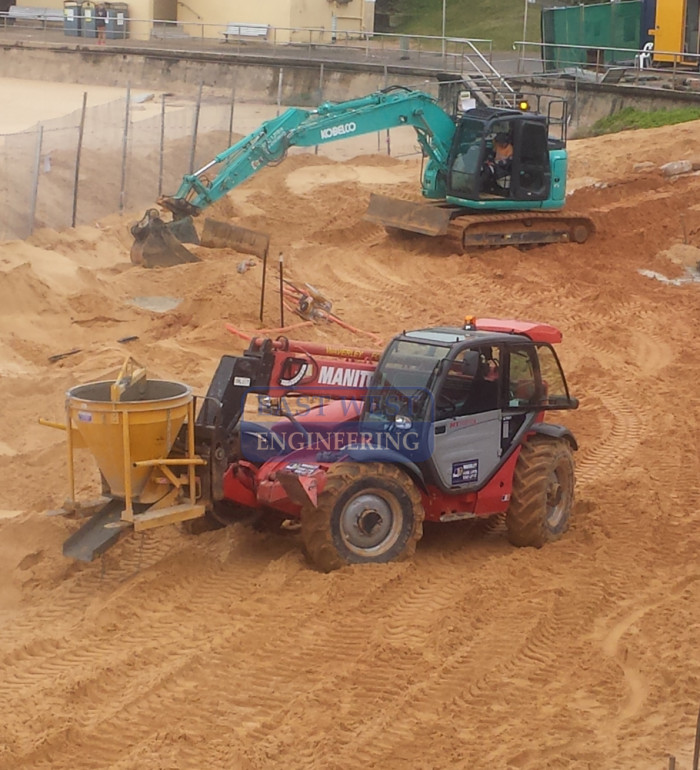

- Fitted with fork pockets for transport around the work site

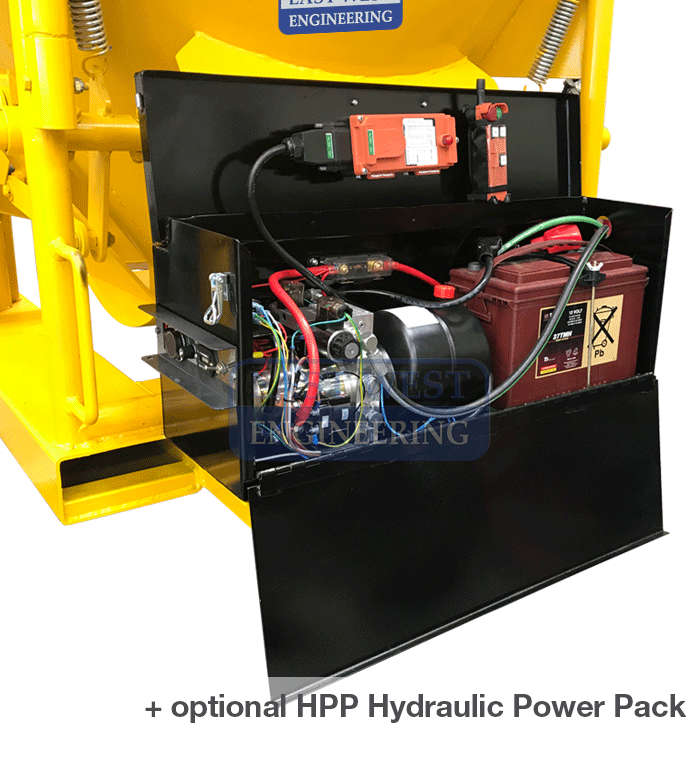

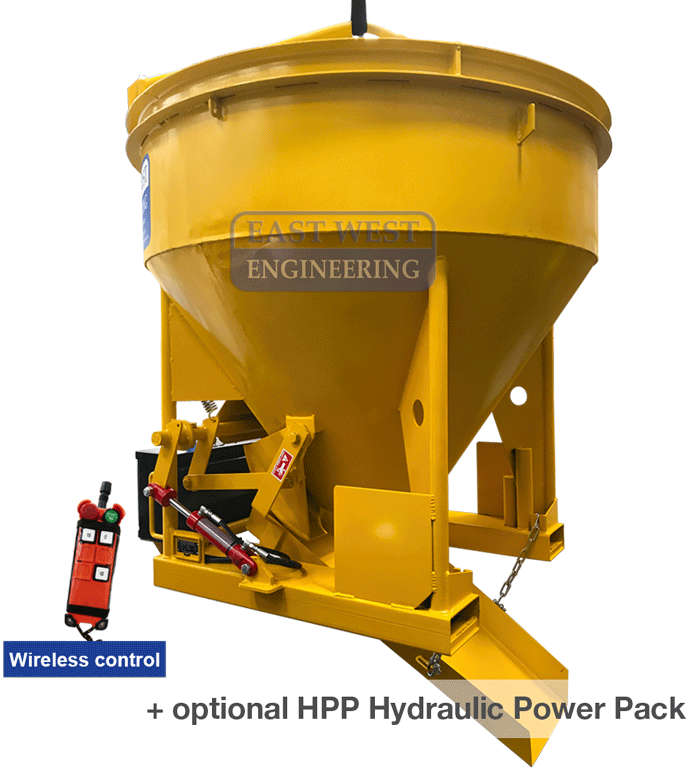

- Hydraulic Kibble Option (HPP-REMOTE) available to remotely control kibble
- Enamel paint finish
SPECIFICATIONS
| Model | Volume Capacity (cu.m) | Working Load Limit (kg) | Filling Height (mm) | Overall Dimensions (mm) | Unit Weight (kg) |
|---|---|---|---|---|---|
| CKM05 | 0.5 | 1500 | 1175 | 1630 x 1255 x 1500 | 275 |
| CKM10 | 1.0 | 3000 | 1320 | 1760 x 1655 x 1705 | 320 |
| CKM15 | 1.5 | 4000 | 1510 | 1850 x 1655 x 1970 | 415 |
 |
