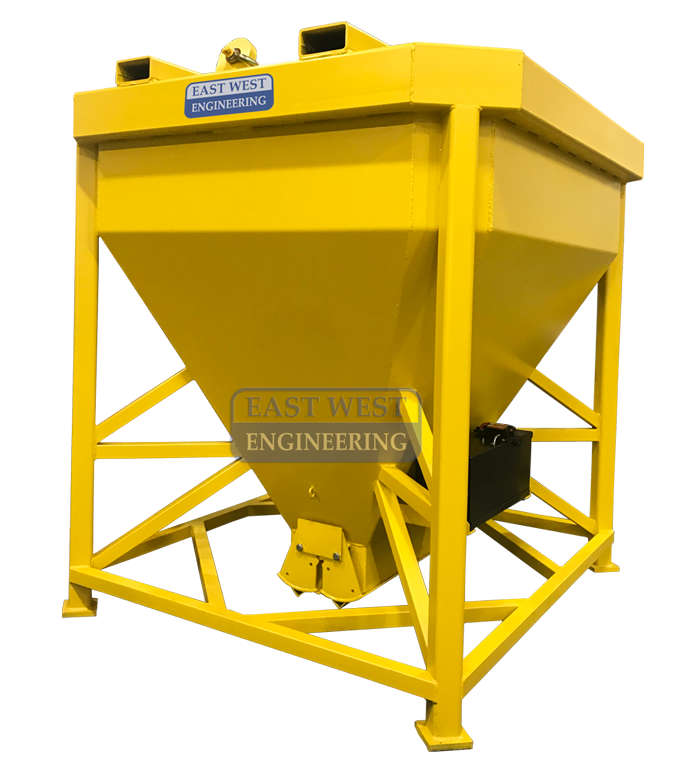

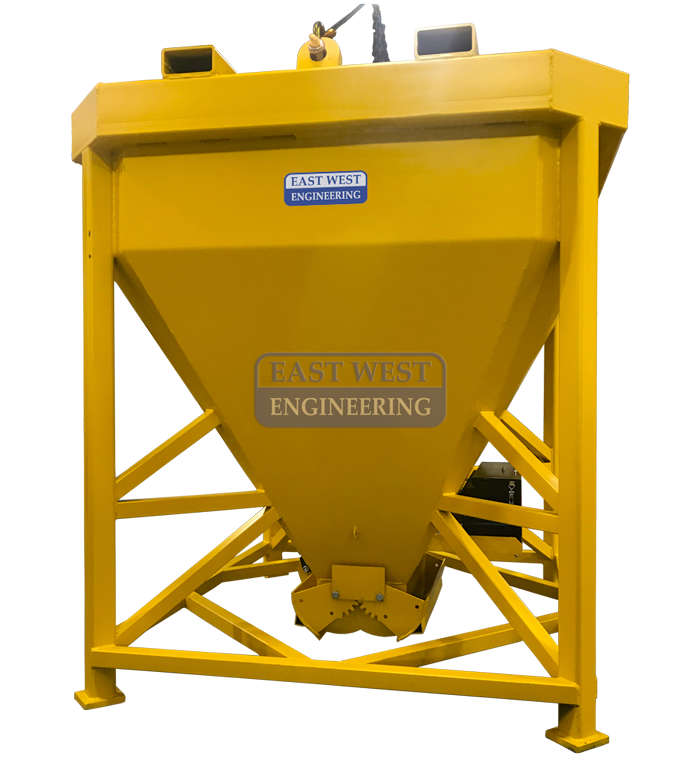

The CKV Stand-up Concrete Kibble is designed for easy transfer of concrete on site by overhead crane.  Fitted with a hydraulic power pack, this heavy-duty, high volume kibble allows the operator wireless remote control of concrete pours at a safe distance.

FEATURES:

  • Suits large scale concrete pours
  • Fitted hydraulic power pack eliminates the need to manually operate kibble

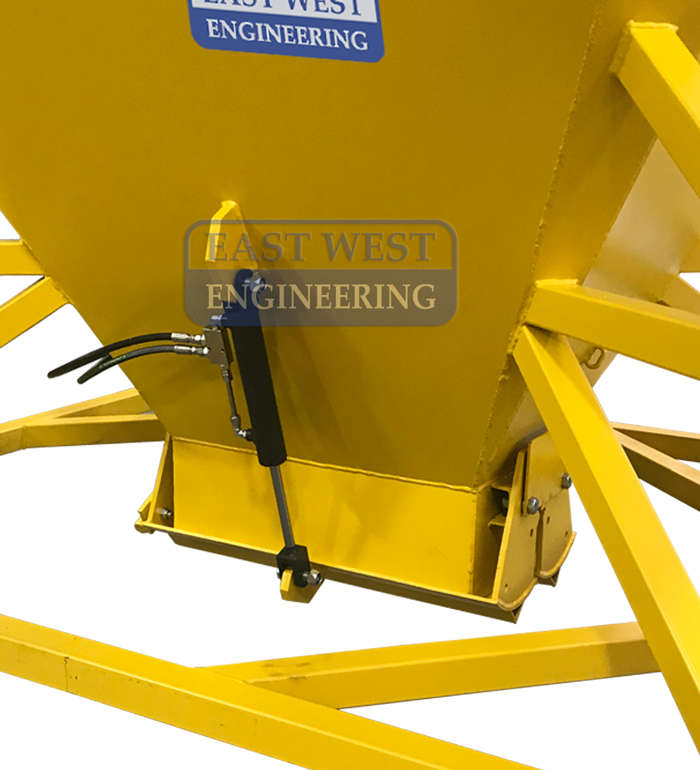

  • Fitted with a hydraulic operated 460 x 830mm clamshell gate
  • Fork pockets fitted for transport around the work site
  • Enamel paint finish

SPECIFICATIONS

ModelVolume Capacity (cu.m)Working Load Limit (kg)Filling Height (mm)Overall Dimensions (mm)Unit Weight  (kg)
CKV25 2.1 6000 1670 1995 x 1695 x 1820 1010
CKV50 5.1 12,000 2275 2415 x 2115 x 2450 1900
alert
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
