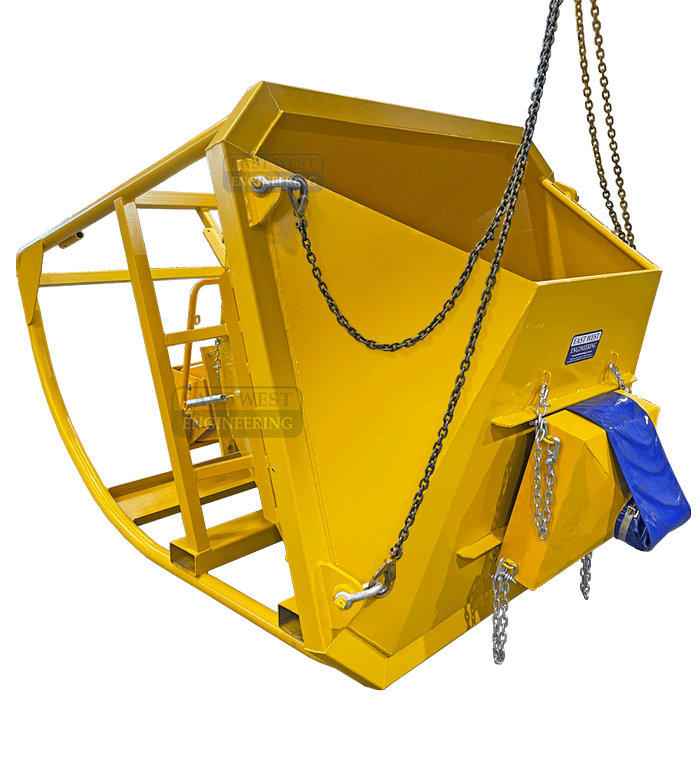

The CKROF Concrete Kibble is a heavy duty, roll-over style for easy transfer of concrete on site by overhead crane.
FEATURES:
- Suits large applications with models available for up to 3cu.m capacity
- Roll-over (laydown) style allows filling from concrete dispensing chute

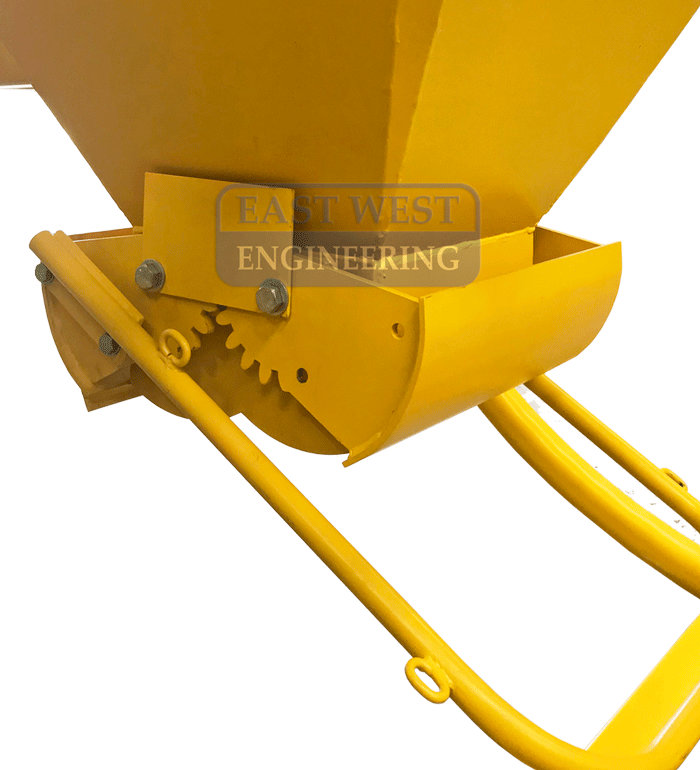

- Fitted with a lever operated 400mm x 400mm clamshell gate with auto close
- Removable concrete funnel with 2m lay-flat hose allows controlled flow when filling wall cavities, columns or narrow formwork
- 4 point lift crane lugs fitted to increase safety and reduce weight
- Fork pockets fitted for transport around the work site
- Hydraulic operated models (CKROF20H & CKROF30H) allow remote control of kibble
- Also available in slide valve operated models (SV) or remotely controlled hydraulic slide valve models (SVH) for precise control over concrete flow
- Enamel paint finish
