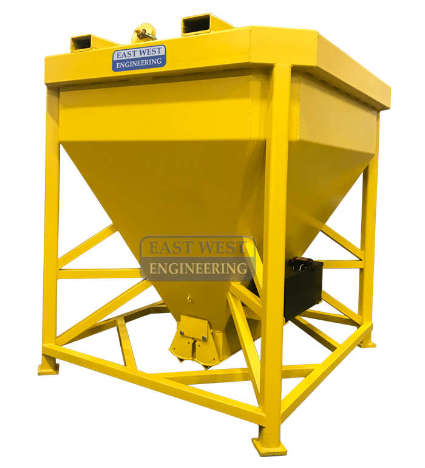

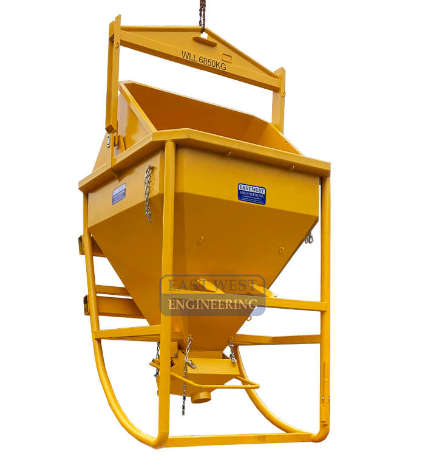

CK KibbleConcrete Kibbles have been designed for easy transfer of concrete on site by overhead crane.



This lightweight yet heavy duty kibble can be used for both bottom and side discharge with the use of the adjustable chute. The unit is lever operated from either side for easy operation and is also fitted with fork pockets for transport purposes. Enamel painted finish, Safety Yellow.


Active Lifting Equipment kibbles are supplied with full instructions, risk and hazard identification manuals.



TypeCapacitySWLUnit WeightFilling HeightTransport Dimensions (mm)
CK05 0.5 cu. m 1500 kg 275 kg 995 mm 1450 x 1540 x 1380 high
CK10 1.0 cu. m 3000 kg 320 kg 1295 mm 1450 x 1540 x 1680 high

Click to enlarge images:

thumb ck05a  thumb ck05b  thumb ck05c  thumb ck05d
