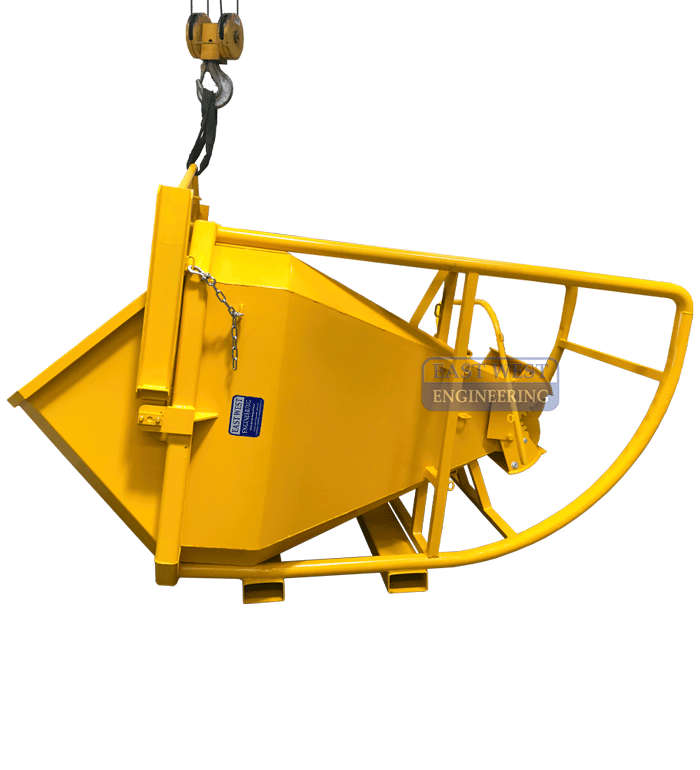

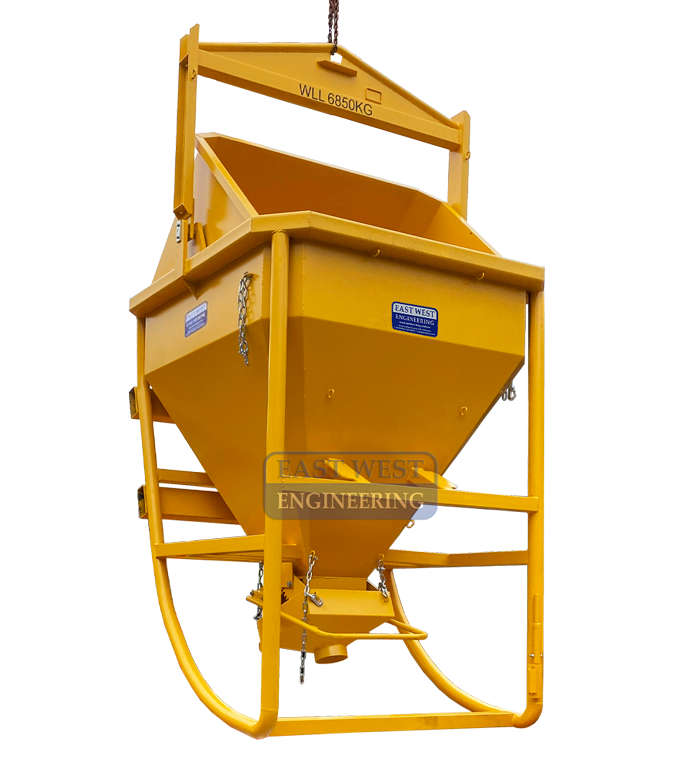

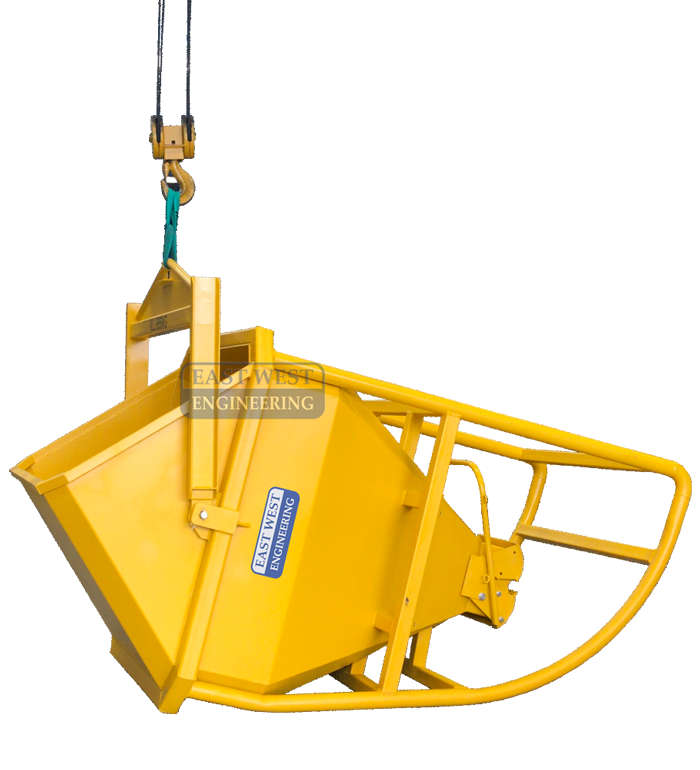

The CKRO Concrete Kibble is a heavy duty, roll-over style for easy transfer of concrete on site by overhead crane.
FEATURES:
• Suits large applications with models available for up to 3cu.m capacity
• Roll-over (laydown) style allows filling from concrete dispensing chute

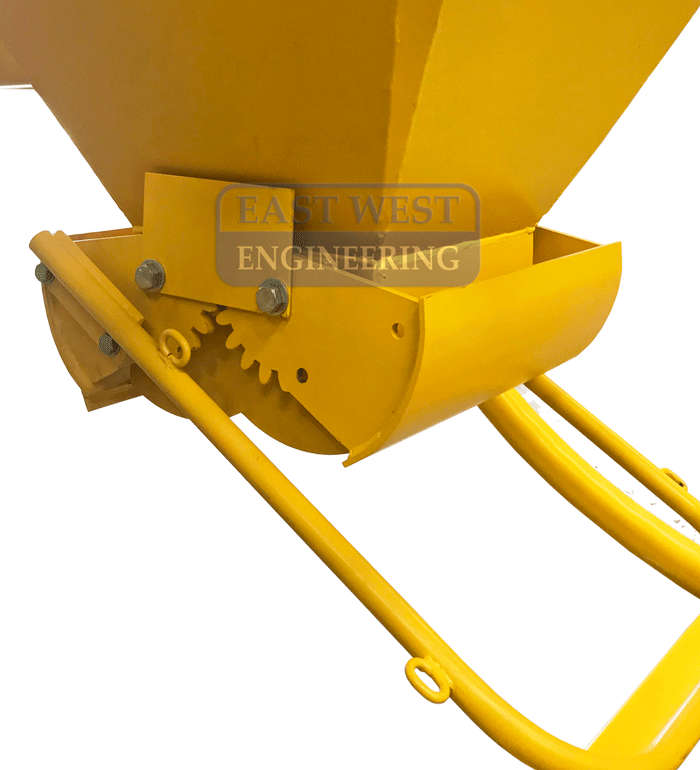

• Fitted with a lever operated 400mm x 400mm clamshell gate

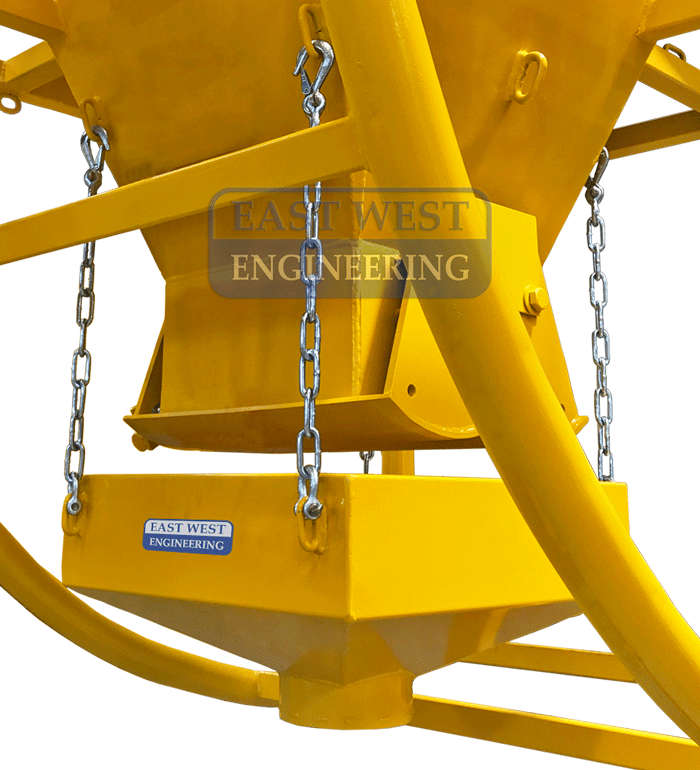

• Removable concrete funnel with 2m lay-flat hose allows controlled flow when filling wall cavities, columns or narrow formwork
• Fork pockets fitted for transport around the work site

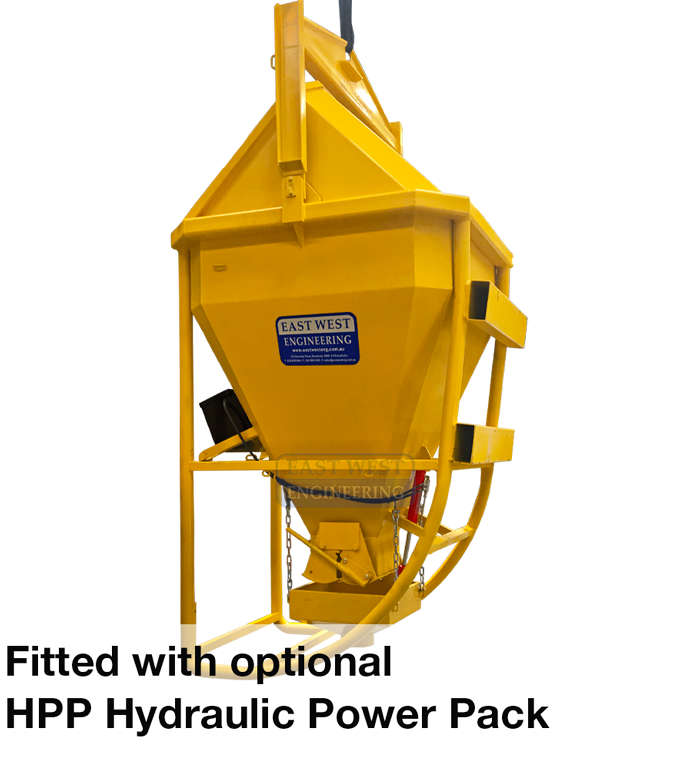

• Hydraulic Kibble Option (HPP-REMOTE) available to remotely control kibble
• Enamel paint finish
SPECIFICATIONS
| Model | Volume Capacity (cu.m) | Working Load Limit (kg) | Filling Height (mm) | Laydown Dimensions L x D x H (mm) | Pocket Size (mm) | Pocket Centres (mm) | Unit Weight (kg) | Lay Flat Hose Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| CKRO21 | 2.1 | 5000 | 1160 | 3277 x 1800 x 2130 | 185 x 85 | 800 | 910 | 200 Ø x 2000 |
| CKRO30 | 3.0 | 7500 | 1240 | 3615 x 2100 x 2415 | 185 x 85 | 700 | 1310 | 200 Ø x 2000 |
