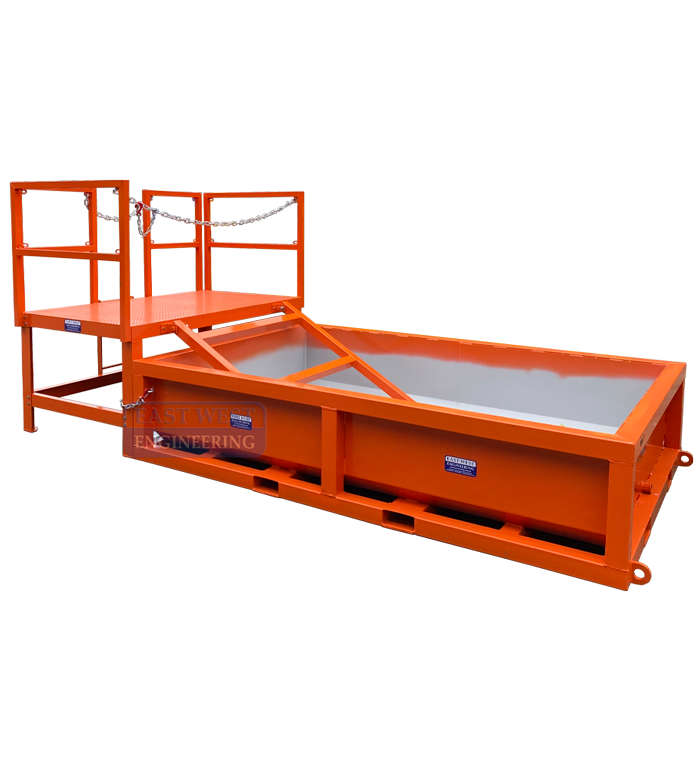

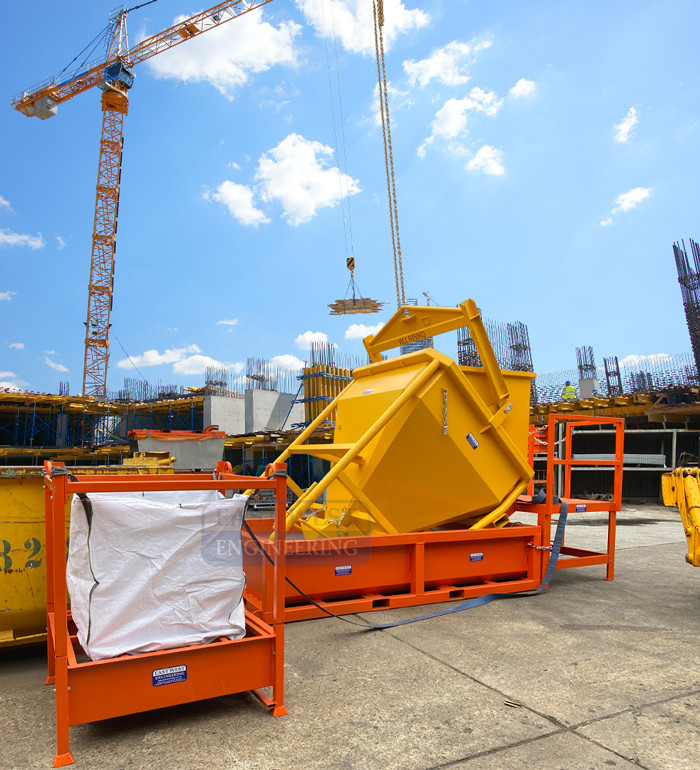

The WTU50 Kibble Washout Unit is a safe and convenient solution for washing out concrete kibbles and other equipment on site. This EPA friendly unit is designed to limit environmental damage and ensure longlife of concrete equipment by preventing concrete build up.
FEATURES:
- Allows EPA compliant washout of concrete equipment onsite

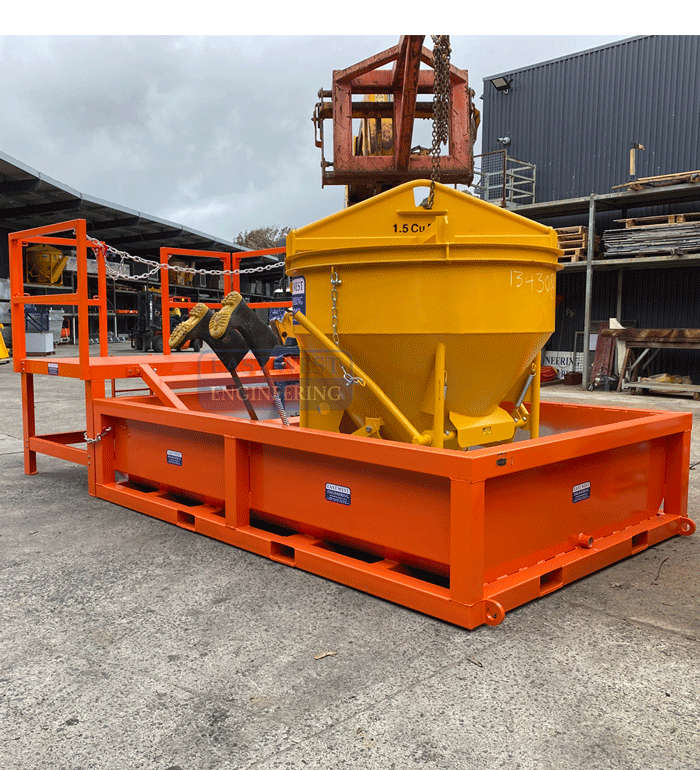

- Frame suits use with CKM & CKRO Concrete Kibbles
- Raised platform deck allows easy access to wash out inside of kibble
- Wastewater in skip bin can be pumped into a filtration unit for treatment or emptied into a washout pit
- Fork pockets and crane lugs fitted to skip bin for easy relocation around the site
- Enamel paint finish
SPECIFICATIONS
| Skip Bin: WLL | 5000kg |
|---|---|
| Skip Bin: Capacity | 3.5 cu.m |
| Skip Bin: Dimensions | 2150(w) x 3370(l) x 700(h) mm |
| Skip Bin: Unit Weight | 880kg |
| Skip Bin: Pocket Size | 190 x 80mm |
| Skip Bin: Pocket Centres | 900mm |
| Platform: Dimensions | 2272(w) x 2767(l) x 1940(h) mm |
| Platform: Unit Weight | 350kg |
| Combined: Overall Dimensions | 2272(w) x 4745(l) x 1940(h) mm |
| Combined: Unit Weight | 1230kg |
