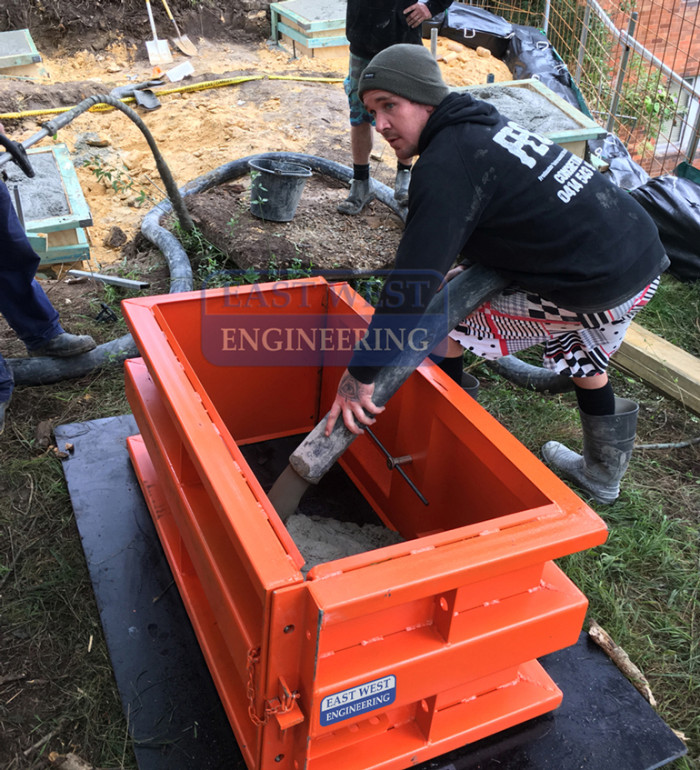

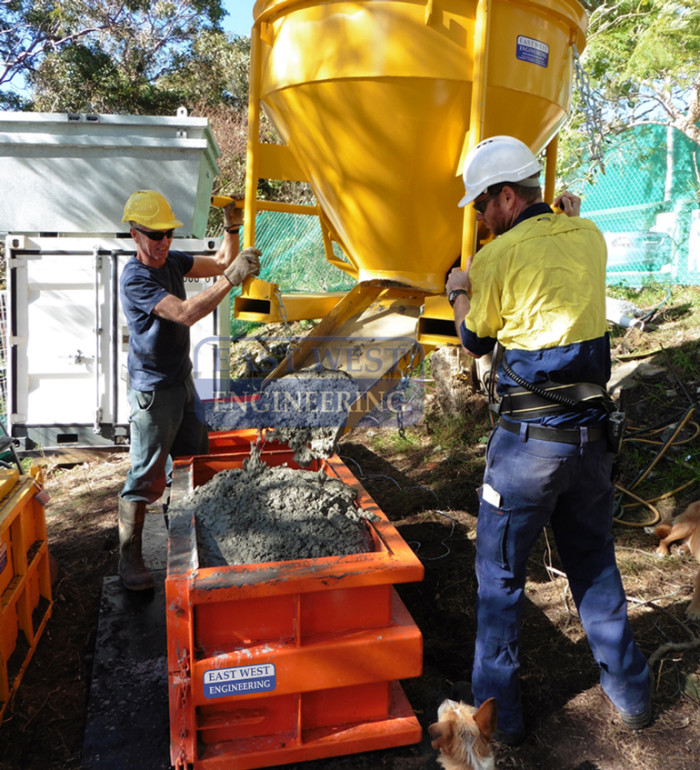

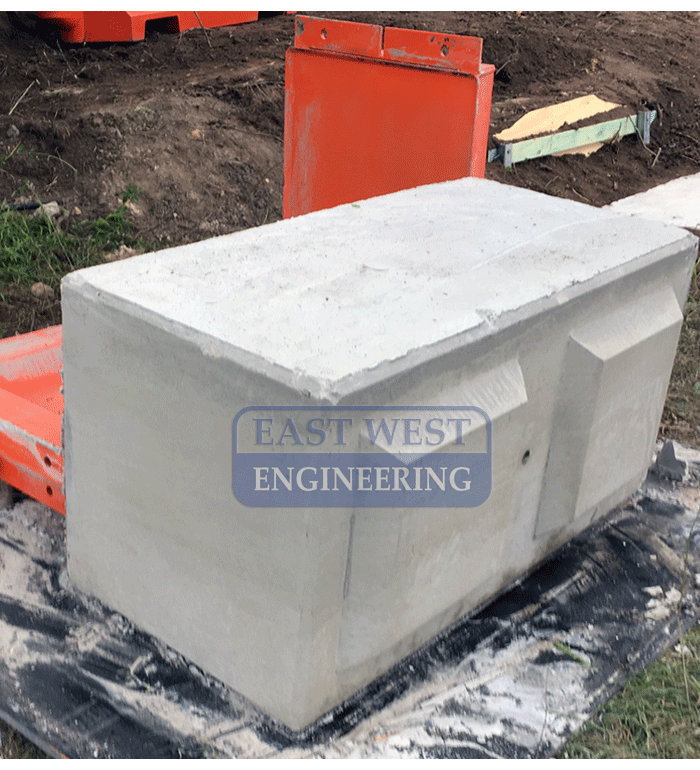

The CWM Concrete Moulds are designed to allow surplus concrete to be processed into concrete blocks, reducing the expense and waste of materials when disposing of leftover concrete at the end of day’s pour. Its simple construction and portable design make it the perfect solution for recycling leftover concrete on-site.
FEATURES:
- Simple construction is fast to assemble
- Lightweight & stackable design is easy to transfer between sites

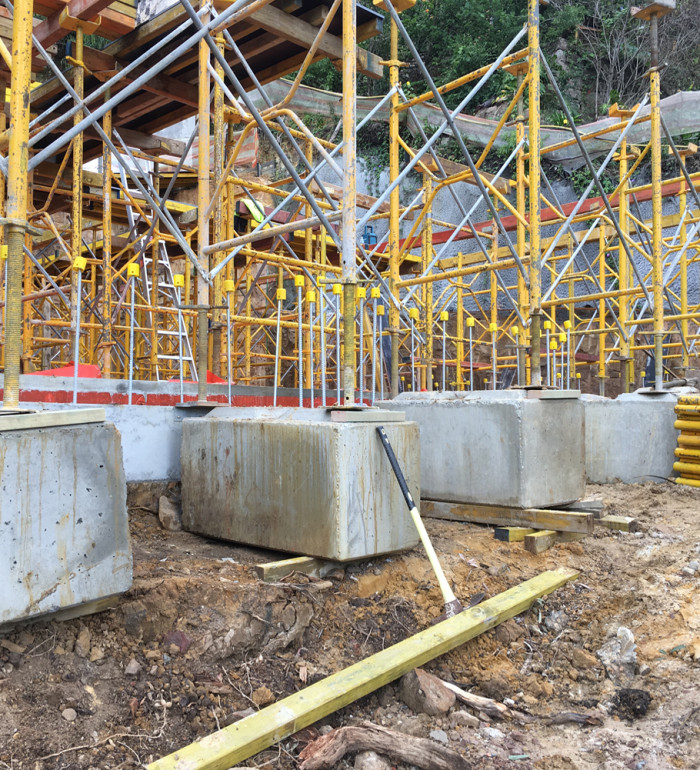

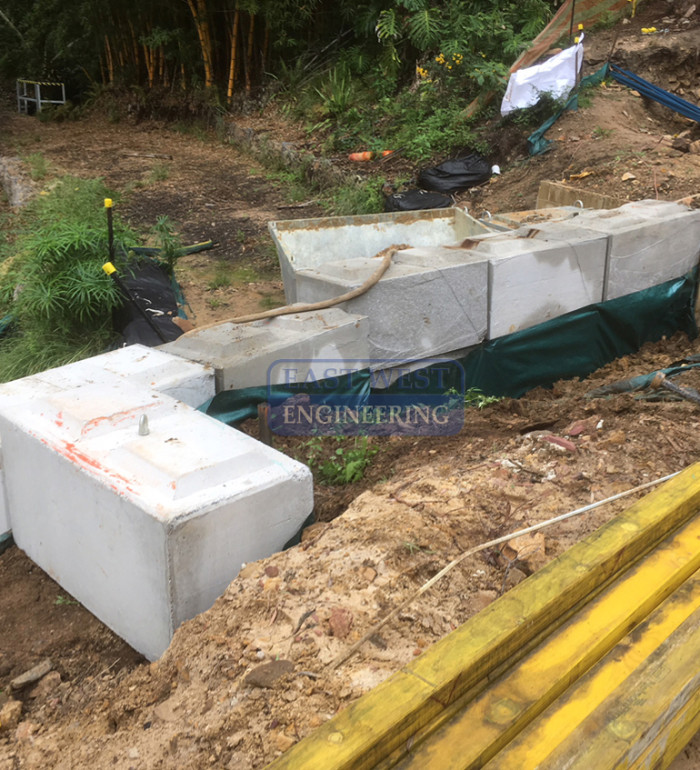

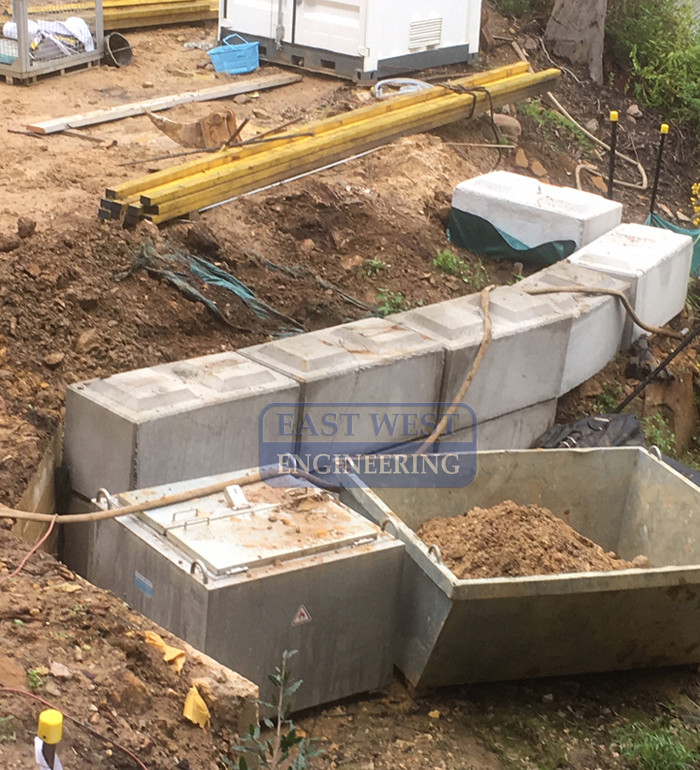

- Concrete blocks can be used as temporary foundation blocks, retaining walls, security blocks and anchor blocks for boat moorings

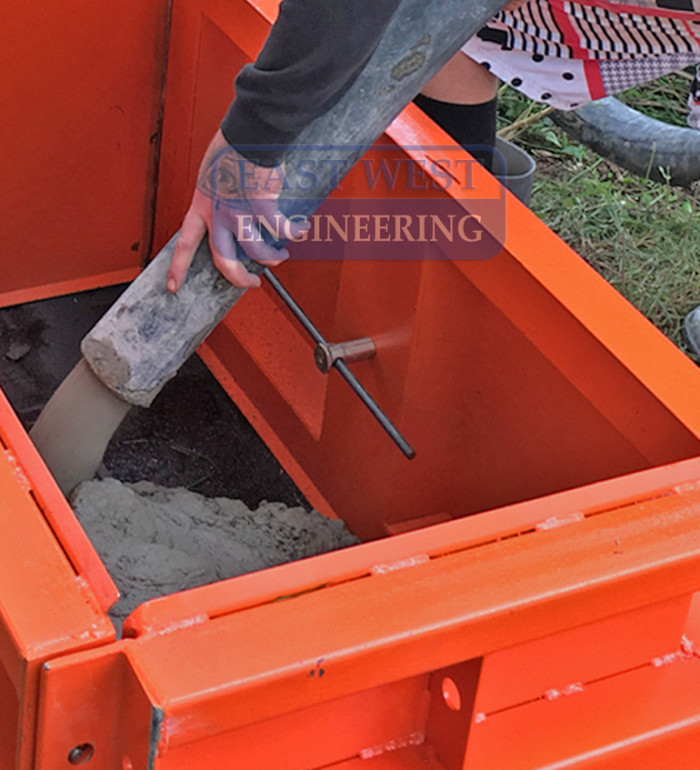

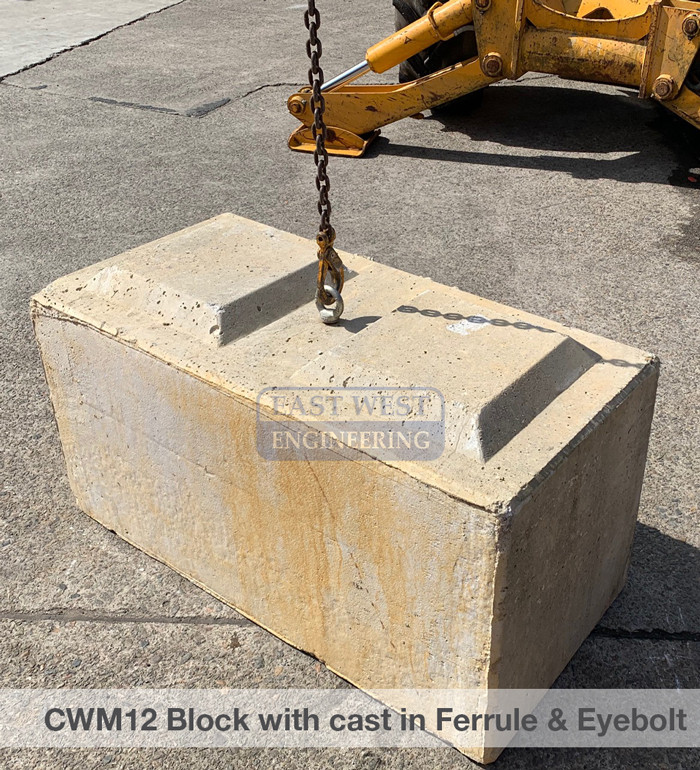

- Provision for cast in ferrule (suits 12mm reinforcing bar)
- Supplied with a single M20 eyebolt and ferrule
- Available in 2 sizes

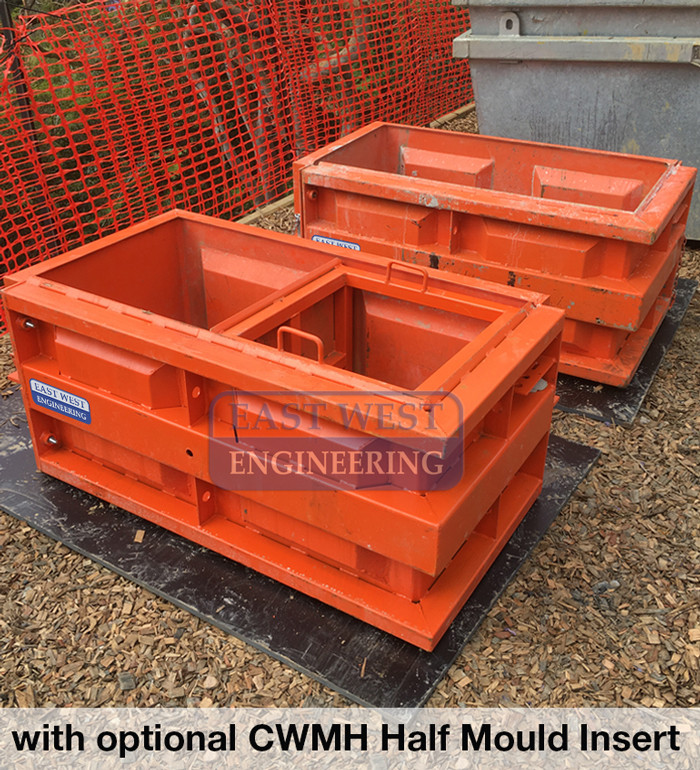

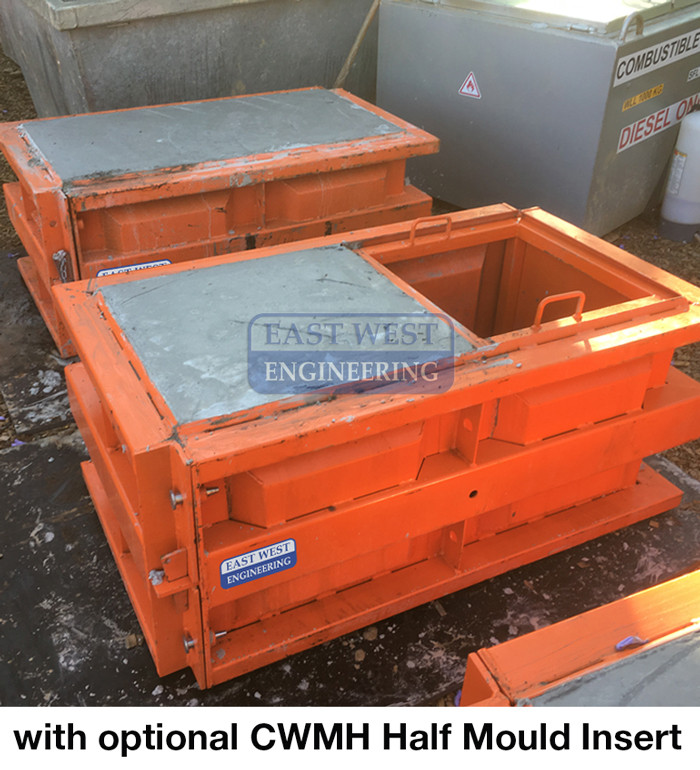

- Half mould insert available for smaller blocks to be used in retaining wall applications
- Enamel paint finish
SPECIFICATIONS

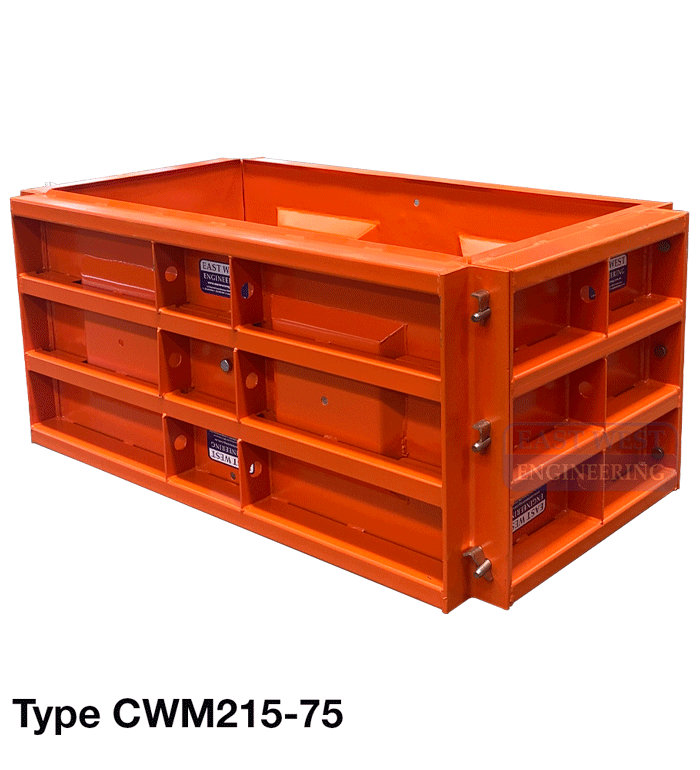

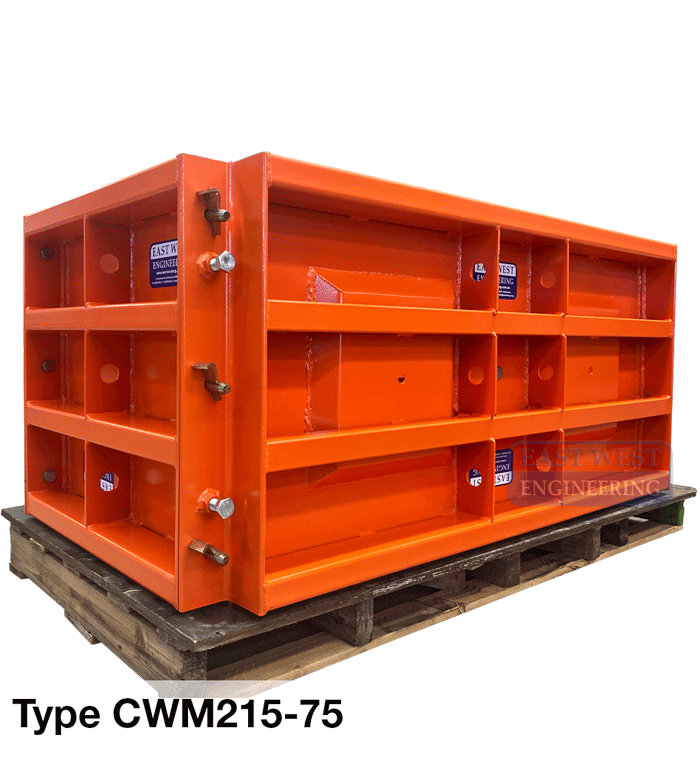

| CWM12 | CWM215-75 | |
| Capacity | 0.432cu.m | 0.844cu.m |
| Overall Dimensions | 1356 x 756 x 600mm | 1700 x 950 x 750mm |
| Finished Block Dimensions | 1200 x 600 x 600mm | 1500 x 750 x 750mm |
| Finished Block Weight | 950kg approx | 1850kg approx |
| Unit Weight | 178kg | 270kg |
 |
