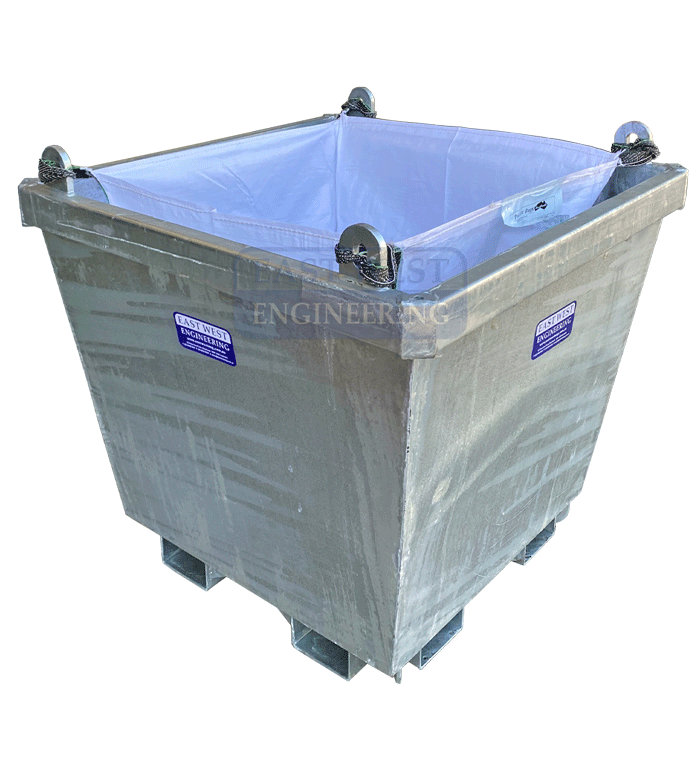

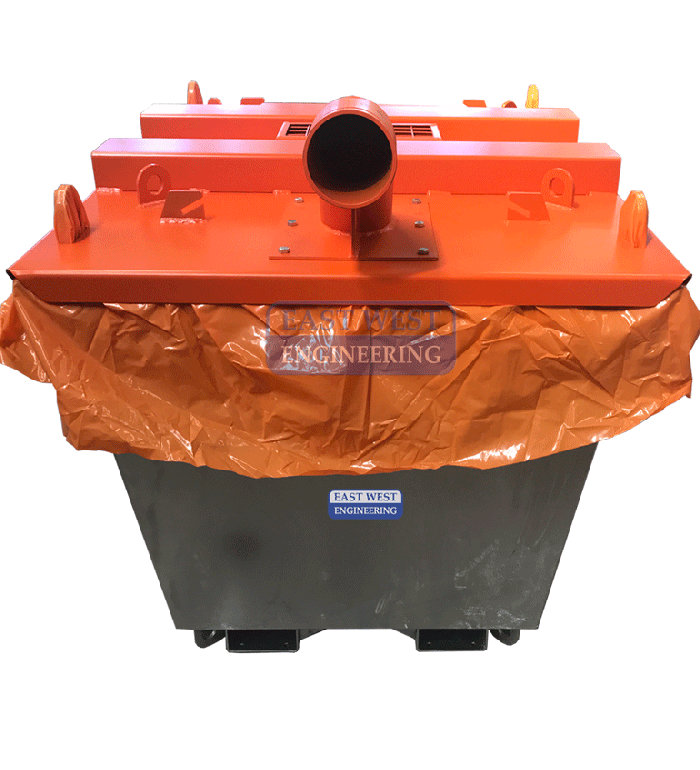

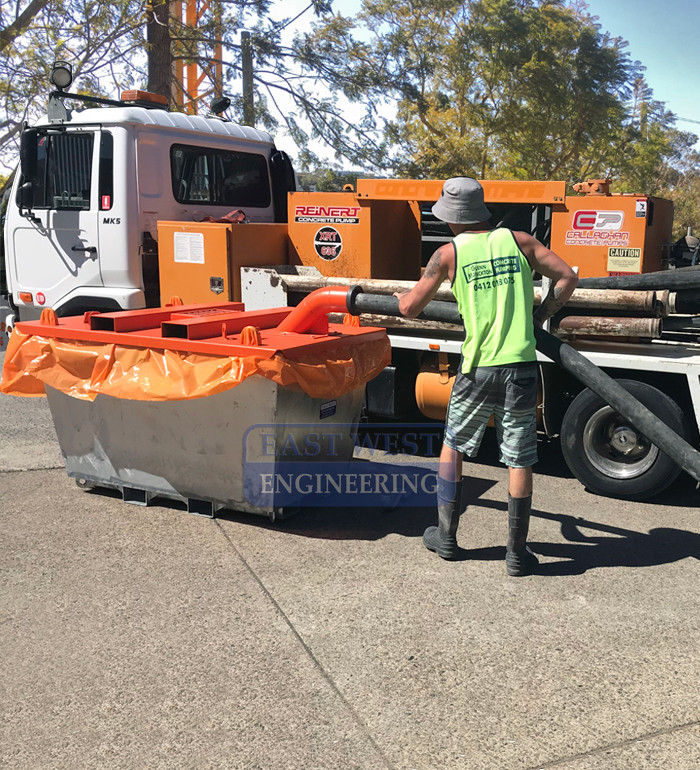

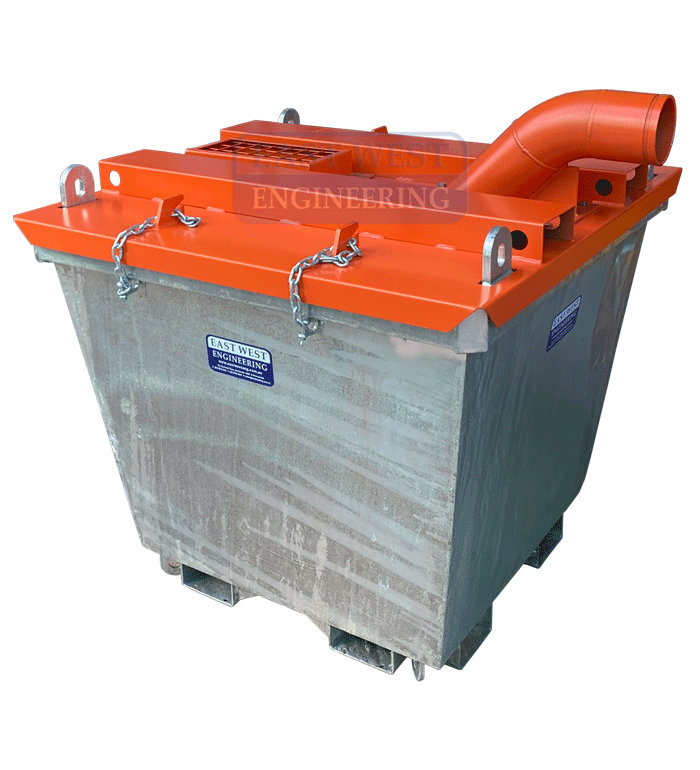

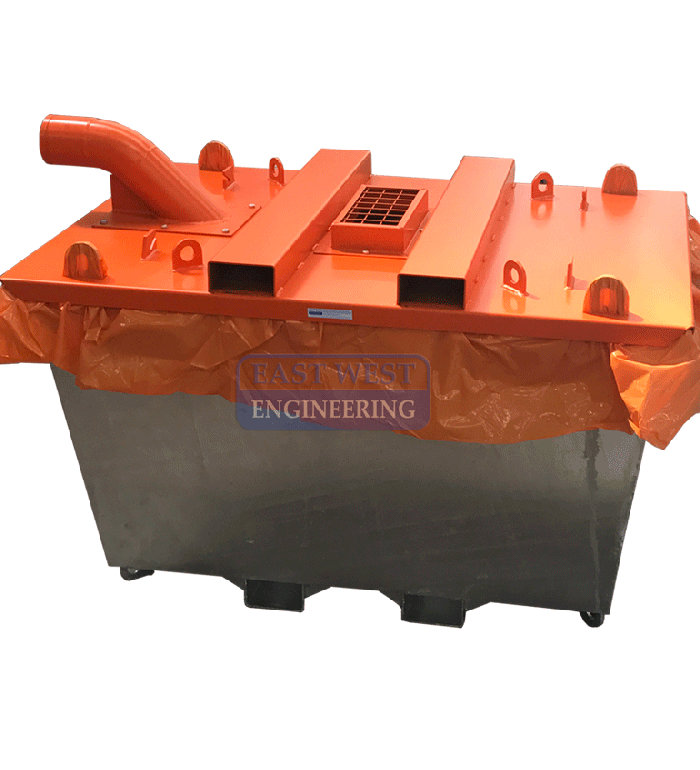

The CPC Concrete Washout Bin is a safe, effective on-site solution for handling line cleans of boom and line concrete pumps. Designed for optimal safety, its heavy-duty construction with waste intake pipe and air vent removes the risk of injury caused by blowouts during line cleaning. Available in 3 options, the containment bin ensures EPA compliance by preventing pollution from run off and cleanly stores cement waste. Disposable concrete washout plastic liners are available to make collection and disposal of waste easy, fast and cost effective.
FEATURES:
- Suitable for use with boom and line concrete pumps
- Can safely be used with compressed air and water line cleans
- Easily removable exhaust air vent for sponge recovery
- Lid secured to bin by safety chains in 4 points
- Lid fitted with crane lugs and fork pockets for easy fit up and removal
- Bin fitted with crane lugs for both lifting and up-ending load and 4-way entry fork pockets

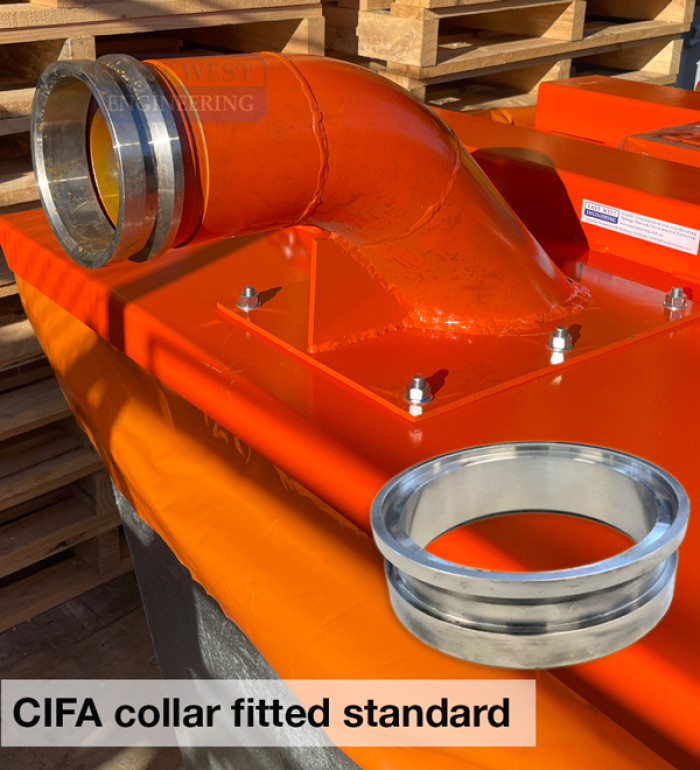

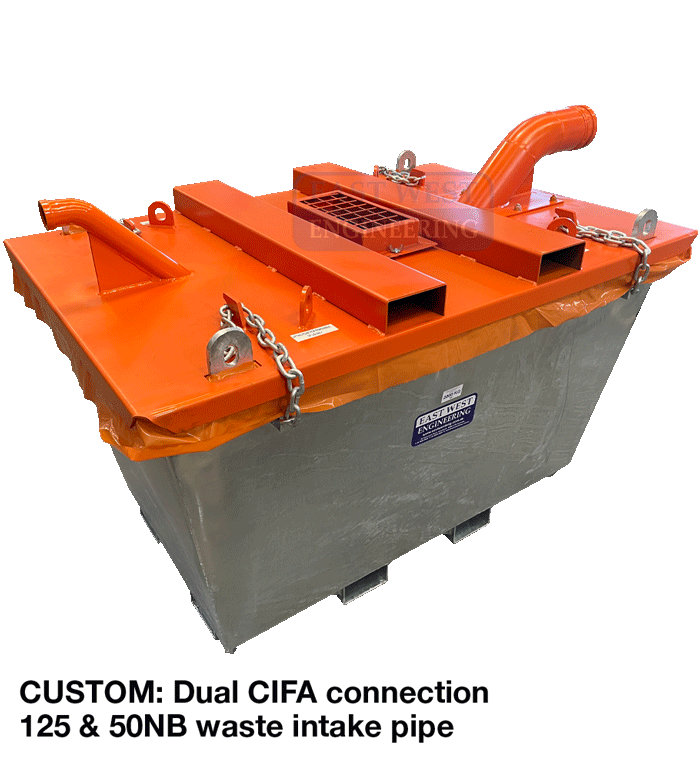

- 125mm NB waste intake pipe with CIFA collar fitted standard for quick and safe connection
- Disposable plastic liner included and available for reorder (CPC17DPL or CPC23DPL)
- Enamel paint finish lid and galvanised finish bin
SPECIFICATIONS
| Model | Bin Volume Capacity (cu.m) | Bin Working Load Limit (kg) | Overall Dimensions (mm) | Plastic Liner Reorder Part # | Unit Weight (kg) |
|---|---|---|---|---|---|
| CPC11 | 0.85 | 2000 | 1290 x 1180 x 1350 | CPC17DPL | 242 |
| CPC17 | 1.3 | 2000 | 1830 x 1185 x 1285 | CPC17DPL | 320 |
| CPC23 | 2.5 | 2000 | 2330 x 1545 x 1320 | CPC23DPL | 600 |
| CPC23H | 2.4 | 5000 | 2330 x 1545 x 1325 | CPC23DPL | 850 |
