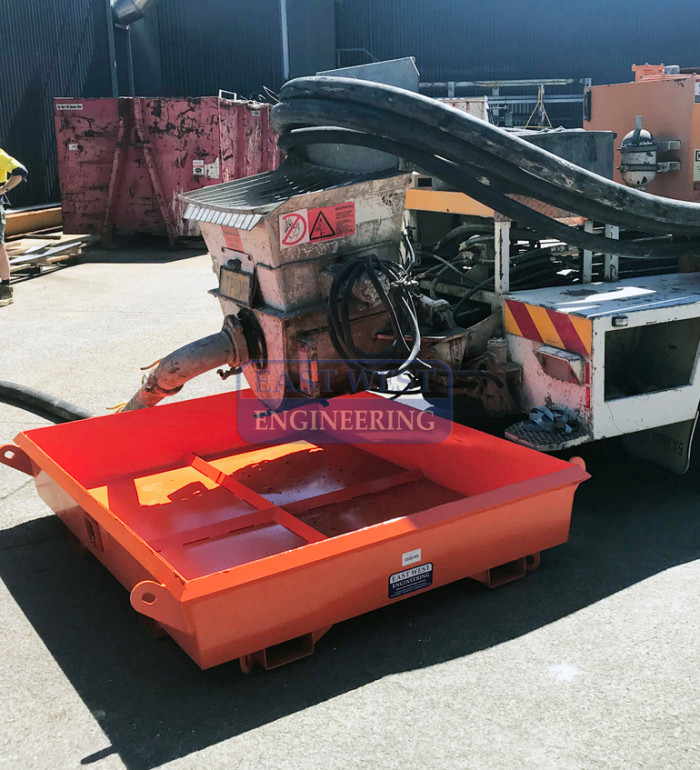

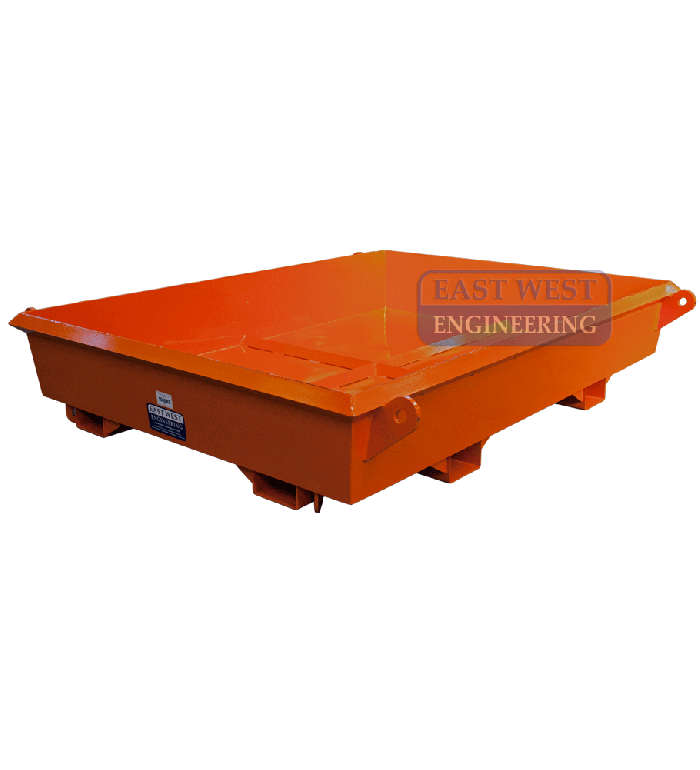

The CCN215 Concrete Collection Tray is designed to limit environmental damage wherever a concrete pump is being used on site. This low profile tray fits under the concrete pump to collect spillage washout water and concrete waste.
FEATURES:
- 0.85 cu.m capacity
- Low profile tray with tapered sides
- Reinforced base and sides

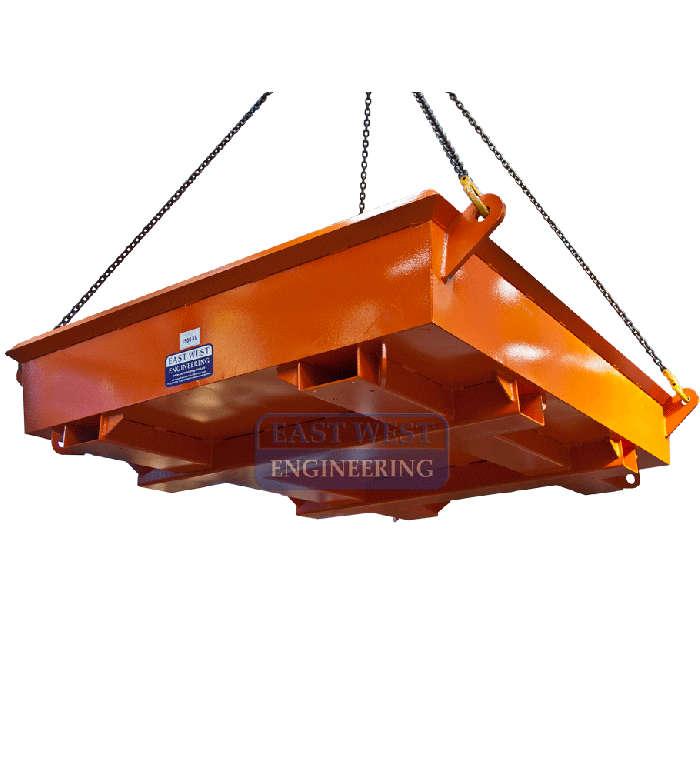

- Fitted with crane lifting and up-ending lugs

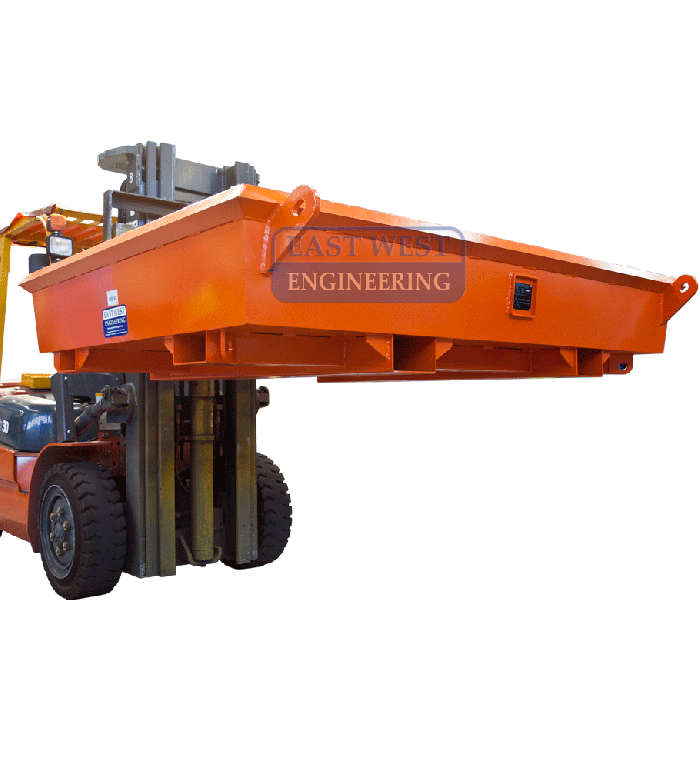

- 4-way fork pockets allowing access from all sides

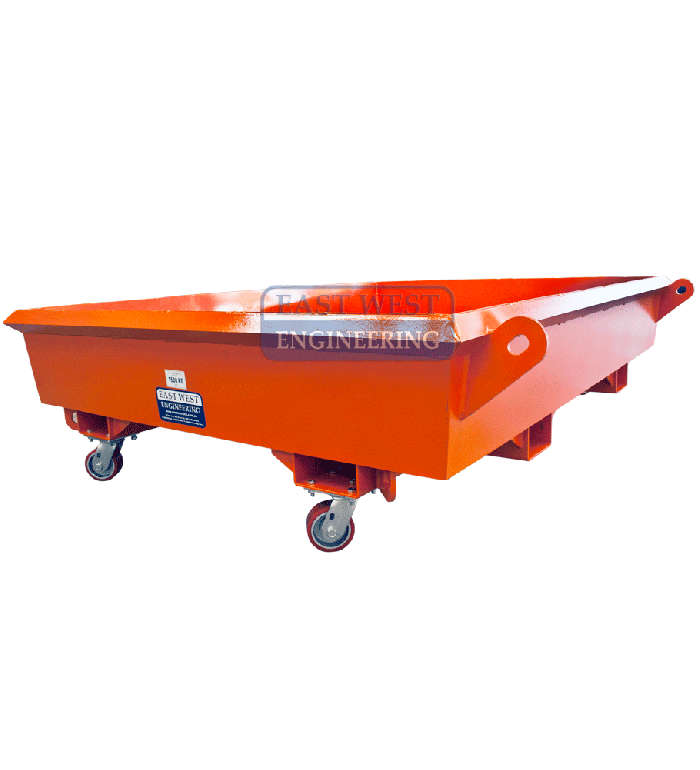

- Optional wheel kit available on request
- Optional disposable plastic liner (CCNDPL)
- Enamel paint finish
SPECIFICATIONS
| Working Load Limit (WLL) | 1500kg |
|---|---|
| Capacity | 0.85 cu.m |
| Tray Dimensions | 2070 x 1570 x 400mm |
| Overall Dimensions | 2070 x 1765 x 400mm |
| Unit Weight | 215kg |
| Fork Pocket Size | 160 x 75mm / 160 x 95mm |
| Fork Pocket Centres | 870mm |
